one way sprag freewheel clutch bearing CSK,CSK..P,CSK...PP,CSK...2RS series

Brand Name : R&B

Model Number : CSK 30PP

Certification : SGS

Place of Origin : Jiangsu,China

MOQ : 10pcs

Price : USD1.00-3.00/pcs

Supply Ability : 100000pcs/per month

Delivery Time : 5 -10 work days

Packaging Details : single box paacking

Material : Gcr15

ID : 30mm

OD : 62mm

Height : 16mm

Weight : 0.21kg

Torque Capacity : 138N.M

Application : Printing machine,textile machine

Contact Now

Product Description

One Way Clutch Indexing Clutch (CSK CSK-2RS)

Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40). It is bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm. The use of additional "nylos" type seals is recommended especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
All the CSK versions are equipped with "formchromed" sprags. This process increases several times the overrunning life time. Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if using the press fit as specified. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C. CSK..2RS is 5 mm wider but is equiped with lip seals to be water splash resistant.

Type	Size	Bearing series					Bearing loads		Weight	Dragtorque
Type	Size	Bearing series					dynamic	static	Weight	Dragtorque
CSK (KK)	d		TKN1)	nmax	D	L	C	C0		TR
	[mm]		[Nm]	[min-1]	[mm]	[mm]	[kN]	[kN]	[kg]	[Ncm]
	8*	-	2.5	15000	22	9	3.28	0.86	0.015	0.5
	12	6201	9.3	10000	32	10	6.1	2.77	0.04	0.7
	15	6202	17	8400	35	11	7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12	7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14	9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15	10.7	5.46	0.14	2
	30	6206	138	4200	62	16	11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17	12.6	7.28	0.3	5.8
	40	-	325	3000	80	22	15.54	12.25	0.5	7
CSK..2RS	8**		2.5	15000	22	9	3.28	0.86	0.015	0.8
	12	-	9.3	10000	32	14	6.1	2.77	0.05	3
	15		17	8400	35	16	7.4	3.42	0.07	4
	17		30	7350	40	17	7.9	3.8	0.09	5.6
	20		50	6000	47	19	9.4	4.46	0.145	6
	25		85	5200	52	20	10.7	5.46	0.175	6
	30		138	4200	62	21	11.7	6.45	0.27	7.5
	35		175	3600	72	22	12.6	7.28	0.4	8.2
	40	-	325	3000	80	27	15.54	12.25	0.6	10

one way sprag freewheel clutch bearing CSK,CSK..P,CSK...PP,CSK...2RS series

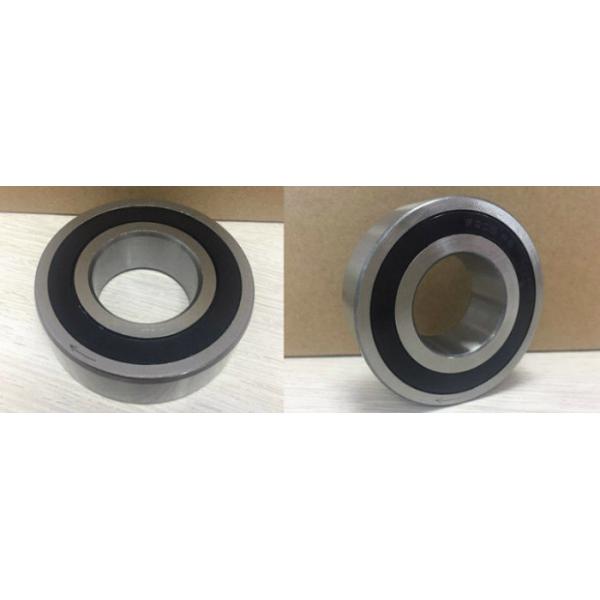

one way sprag freewheel clutch bearing CSK,CSK..P,CSK...PP,CSK...2RS series Images
